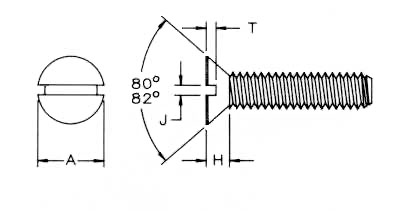

| Thread Size |
A |
H* |
J |
T |
| 1 |
.126 -
.146 |
.043 |
.019 -
.026 |
.012 -
.019 |
| 2 |
.147 -
.172 |
.051 |
.023 -
.031 |
.015 -
.023 |
| 4 |
.195 -
.225 |
.067 |
.031 -
.039 |
.020 -
.030 |
| 6 |
.244 -
.279 |
.083 |
.039 -
.048 |
.024 -
.038 |
| 8 |
.292 -
.332 |
.100 |
.045 -
.054 |
.029 -
.045 |
| 10 |
.340 -
.385 |
.116 |
.050 -
.060 |
.034 -
.053 |
| 12 |
.389 -
.438 |
.132 |
.056 -
.067 |
.039 -
.060 |
| 1/4 |
.452 -
.507 |
.153 |
.064 -
.075 |
.046 -
.070 |
| 5/16 |
.568 -
.635 |
.191 |
.072 -
.084 |
.058 -
.088 |
| 3/8 |
.685 -
.762 |
.230 |
.081 -
.094 |
.070 -
.106 |
|
* This dimension is for
reference only.
| Item Number |
Description |
| 020172A025 |
1-72 X 0.25 |
| 020172A050 |
1-72 X 0.5 |
| 020256A018 |
2-56 X 0.1875 |
| 020256A025 |
2-56 X 0.25 |
| 020256A031 |
2-56 X 0.3125 |
| 020256A037 |
2-56 X 0.375 |
| 020256A043 |
2-56 X 0.4375 |
| 020256A050 |
2-56 X 0.5 |
| 020256A056 |
2-56 X 0.5625 |
| 020256A062 |
2-56 X 0.625 |
| 020256A075 |
2-56 X 0.75 |
| 020440A012 |
4-40
X 0.125 |
| 020440A015 |
4-40
X 0.156 |
| 020440A018 |
4-40
X 0.1875 |
| 020440A025 |
4-40
X 0.25 |
| 020440A031 |
4-40
X 0.3125 |
| 020440A037 |
4-40
X 0.375 |
| 020440A050 |
4-40
X 0.5 |
| 020440A056 |
4-40
X 0.5625 |
| 020440A062 |
4-40
X 0.625 |
| 020440A075 |
4-40
X 0.75 |
| 020440A100 |
4-40
X 1 |
| 020440A112 |
4-40
X 1.125 |
| 020440A118 |
4-40
X 1.1875 |
| 020440A125 |
4-40
X 1.25 |
| Item Number |
Description |
| 020440A137 |
4-40
X 1.375 |
| 020440A150 |
4-40
X 1.5 |
| 020440A175 |
4-40
X 1.75 |
| 020448A015 |
4-48
X 0.156 |
| 020448A025 |
4-48
X 0.25 |
| 020632A018 |
6-32
X 0.1875 |
| 020632A025 |
6-32
X 0.25 |
| 020632A031 |
6-32
X 0.3125 |
| 020632A037 |
6-32
X 0.375 |
| 020632A050 |
6-32
X 0.5 |
| 020632A062 |
6-32
X 0.625 |
| 020632A075 |
6-32
X 0.75 |
| 020632A100 |
6-32
X 1 |
| 020632A112 |
6-32
X 1.125 |
| 020632A125 |
6-32
X 1.25 |
| 020832A012 |
8-32
X 0.125 |
| 020832A025 |
8-32
X 0.25 |
| 020832A031 |
8-32
X 0.3125 |
| 020832A037 |
8-32
X 0.375 |
| 020832A043 |
8-32
X 0.4375 |
| 020832A050 |
8-32
X 0.5 |
| 020832A056 |
8-32
X 0.5625 |
| 020832A062 |
8-32
X 0.625 |
| 020832A075 |
8-32
X 0.75 |
| 020832A100 |
8-32
X 1 |
| Item Number |
Description |
| 020832A125 |
8-32
X 1.25 |
| 021024A050 |
10-24
X 0.5 |
| 021024A075 |
10-24
X 0.75 |
| 021024A100 |
10-24
X 1 |
| 021032A025 |
10-32
X 0.25 |
| 021032A031 |
10-32
X
0.3125 |
| 021032A037 |
10-32
X
0.375 |
| 021032A050 |
10-32
X 0.5 |
| 021032A075 |
10-32
X 0.75 |
| 021032A087 |
10-32
X
0.875 |
| 021032A100 |
10-32
X 1 |
| 021032A125 |
10-32
X 1.25 |
| 021032A150 |
10-32
X 1.5 |
| 022520A025 |
1/4-20 X
0.25 |
| 022520A050 |
1/4-20 X
0.5 |
| 022520A062 |
1/4-20 X
0.625 |
| 022520A075 |
1/4-20 X
0.75 |
| 022520A087 |
1/4-20 X
0.875 |
| 022520A100 |
1/4-20 X 1 |
| 022520A125 |
1/4-20 X
1.25 |
| 022520A150 |
1/4-20 X
1.5 |
| 022520A175 |
1/4-20 X
1.75 |
| 022520A200 |
1/4-20 X 2 |
| 022520A250 |
1/4-20 X
2.5 |
| 0231218A100 |
5/16-18 X 1 |
| Item Number |
Description |
| 0237516A175 |
3/8-16 X 1.75 |
|
