82 Deg. Oval Machine Screws:

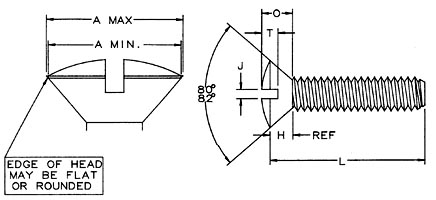

Drawing 1: ovaldrw.jpg
Thread Size A H* O J T
2 .147 - .172 .051 .063 - .080 .023 - .031 .037 - .045
4 .195 - .225 .067 .084 - .104 .031 - .039 .049 - .059
6 .244 - .279 .083 .105 - .128 .039 - .048 .060 - .074
8 .292 - .332 .100 .126 - .152 .045 - .054 .072 - .088
10 .340 - .385 .116 .148 - .176 .050 - .060 .084 - .103
1/4 .452 - .507 .153 .197 - .232 .064 - .075 .112 - .136

* This dimension is for reference only.

Item Number Description
330256A018 2-56 X 0.1875
330256A025 2-56 X 0.25
330256A031 2-56 X 0.3125
330256A037 2-56 X 0.375
330256A043 2-56 X 0.4375
330256A050 2-56 X 0.5
330256A056 2-56 X 0.5625
330256A062 2-56 X 0.625
330256A075 2-56 X 0.75
330440A012 4-40 X 0.125
330440A015 4-40 X 0.156
330440A018 4-40 X 0.1875
330440A025 4-40 X 0.25
330440A031 4-40 X 0.3125
330440A037 4-40 X 0.375
330440A050 4-40 X 0.5
330440A056 4-40 X 0.5625
330440A062 4-40 X 0.625
330440A075 4-40 X 0.75
330440A100 4-40 X 1
330440A112 4-40 X 1.125
330440A118 4-40 X 1.1875
330440A125 4-40 X 1.25
330440A137 4-40 X 1.375
330440A150 4-40 X 1.5



Item Number Description
330440A175 4-40 X 1.75
330448A015 4-48 X 0.156
330448A025 4-48 X 0.25
330632A025 6-32 X 0.25
330632A031 6-32 X 0.3125
330632A037 6-32 X 0.375
330632A050 6-32 X 0.5
330632A062 6-32 X 0.625
330632A075 6-32 X 0.75
330632A100 6-32 X 1
330632A112 6-32 X 1.125
330632A125 6-32 X 1.25
330632A175 6-32 X 1.75
330832A012 8-32 X 0.125
330832A025 8-32 X 0.25
330832A031 8-32 X 0.3125
330832A037 8-32 X 0.375
330832A043 8-32 X 0.4375
330832A050 8-32 X 0.5
330832A056 8-32 X 0.5625
330832A062 8-32 X 0.625
330832A075 8-32 X 0.75
330832A100 8-32 X 1
330832A125 8-32 X 1.25
331024A025 10-32 X 0.25



Item Number Description
331024A031 10-32 X 0.3125
331024A037 10-32 X 0.375
331024A050 10-24 X 0.5
331024A075 10-24 X 0.75
331024A100 10-24 X 1
331024A125 10-24 X 1.25
331032A050 10-32 X 0.5
331032A075 10-32 X 0.75
331032A087 10-32 X 0.875
331032A100 10-32 X 1
331032A125 10-32 X 1.25
331032A150 10-32 X 1.5
332520A025 1/4-20 X 0.25
332520A050 1/4-20 X 0.5
332520A062 1/4-20 X 0.625
332520A075 1/4-20 X 0.75
332520A087 1/4-20 X 0.875
332520A100 1/4-20 X 1
332520A125 1/4-20 X 1.25
332520A150 1/4-20 X 1.5
332520A175 1/4-20 X 1.75
332520A200 1/4-20 X 2
332520A250 1/4-20 X 2.5
