Economy Grade Thumb Screws:

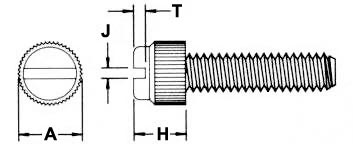

Drawing 1: econtsdw.jpg
Thread Size A* H J T
4-40 .317 .216 .030 .040
6-32 .336 .243 .030 .040
8-32 .381 .280 .035 .045
10-24 .395 .305 .040 .065
10-32 .395 .305 .040 .065
1/4-20 .480 .305 .045 .065
1/4-28 .480 .305 .045 .065

* This dimension +/- .010

Item Number Description
090440009TEG 4-40 X 0.09375
090440012TEG 4-40 X 0.125
090440014TEG 4-40 X 0.141
090440018TEG 4-40 X 0.1875
090440025TEG 4-40 X 0.25
090440028TEG 4-40 X 0.281
090440031TEG 4-40 X 0.3125
090440037TEG 4-40 X 0.375
090440043TEG 4-40 X 0.4375
090440050TEG 4-40 X 0.5
090440056TEG 4-40 X 0.5625
090440062TEG 4-40 X 0.625
090440068TEG 4-40 X 0.6875
090440075TEG 4-40 X 0.75
090440087TEG 4-40 X 0.875
090440100TEG 4-40 X 1
090440112TEG 4-40 X 1.125
090440118TEG 4-40 X 1.1875
090440125TEG 4-40 X 1.25
090440137TEG 4-40 X 1.375
090440150TEG 4-40 X 1.5
090440175TEG 4-40 X 1.75
090448025TEG 4-48 X 0.25
090632009TEG 6-32 X 0.09375
090632012TEG 6-32 X 0.125



Item Number Description
090632015TEG 6-32 X 0.156
090632018TEG 6-32 X 0.1875
090632025TEG 6-32 X 0.25
090632031TEG 6-32 X 0.3125
090632037TEG 6-32 X 0.375
090632043TEG 6-32 X 0.4375
090632050TEG 6-32 X 0.5
090632056TEG 6-32 X 0.5625
090632062TEG 6-32 X 0.625
090632068TEG 6-32 X 0.6875
090632075TEG 6-32 X 0.75
090632087TEG 6-32 X 0.875
090632100TEG 6-32 X 1
090632112TEG 6-32 X 1.125
090632125TEG 6-32 X 1.25
090632150TEG 6-32 X 1.5
090632162TEG 6-32 X 1.625
090632175TEG 6-32 X 1.75
090632187TEG 6-32 X 1.875
090632225TEG 6-32 X 2.25
090640025TEG 6-40 X 0.25
090640037TEG 6-40 X 0.375
090640075TEG 6-40 X 0.75
090640100TEG 6-40 X 1
090832012TEG 8-32 X 0.125



Item Number Description
090832018TEG 8-32 X 0.1875
090832025TEG 8-32 X 0.25
090832028TEG 8-32 X 0.281
090832031TEG 8-32 X 0.3125
090832037TEG 8-32 X 0.375
090832043TEG 8-32 X 0.4375
090832050TEG 8-32 X 0.5
090832062TEG 8-32 X 0.625
090832075TEG 8-32 X 0.75
090832087TEG 8-32 X 0.875
090832100TEG 8-32 X 1
090832112TEG 8-32 X 1.125
090832125TEG 8-32 X 1.25
090832137TEG 8-32 X 1.375
090832150TEG 8-32 X 1.5
090832175TEG 8-32 X 1.75
090832187TEG 8-32 X 1.875
090832200TEG 8-32 X 2
091024012TEG 10-24 X 0.125
091024018TEG 10-24 X 0.1875
091024025TEG 10-24 X 0.25
091024031TEG 10-24 X 0.3125
091024037TEG 10-24 X 0.375
091024050TEG 10-24 X 0.5
091024062TEG 10-24 X 0.625



Item Number Description
091024075TEG 10-24 X 0.75
091024100TEG 10-24 X 1
091024125TEG 10-24 X 1.25
091024150TEG 10-24 X 1.5
091032012TEG 10-32 X 0.125
091032018TEG 10-32 X 0.1875
091032025TEG 10-32 X 0.25
091032031TEG 10-32 X 0.3125
091032037TEG 10-32 X 0.375
091032043TEG 10-32 X 0.4375
091032050TEG 10-32 X 0.5
091032062TEG 10-32 X 0.625
091032075TEG 10-32 X 0.75
091032081TEG 10-32 X 0.8125
091032087TEG 10-32 X 0.875
091032100TEG 10-32 X 1
091032125TEG 10-32 X 1.25
091032150TEG 10-32 X 1.5
091032175TEG 10-32 X 1.75
091032200TEG 10-32 X 2
092520025TEG 1/4-20 X 0.25
092520031TEG 1/4-20 X 0.3125
092520037TEG 1/4-20 X 0.375
092520050TEG 1/4-20 X 0.5
092520062TEG 1/4-20 X 0.625



Item Number Description
092520075TEG 1/4-20 X 0.75
092520087TEG 1/4-20 X 0.875
092520100TEG 1/4-20 X 1
092520125TEG 1/4-20 X 1.25
092520150TEG 1/4-20 X 1.5
092520175TEG 1/4-20 X 1.75
092520200TEG 1/4-20 X 2
092520250TEG 1/4-20 X 2.5
092528018TEG 1/4-28 X 0.1875
092528025TEG 1/4-28 X 0.25
092528037TEG 1/4-28 X 0.375
092528050TEG 1/4-28 X 0.5
092528075TEG 1/4-28 X 0.75
092528100TEG 1/4-28 X 1
