Flowerette Thumb Screws:

Part Photo: flscrew.jpg

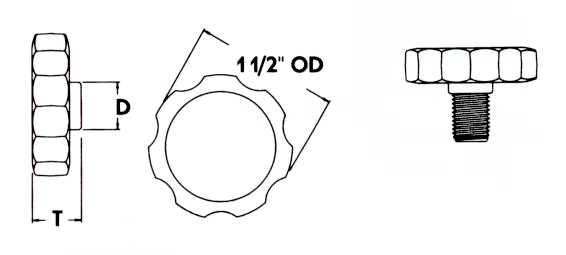

Drawing 1: knobdrw.jpg

Molded Onto Zinc Plated Steel Alloy Socket Head Cap Screw

All Parts Up To 1 Long Are Fully Threaded.

COLOR CODES MUST BE INCLUDED WITH THE ITEM NUMBER WHEN ORDERING.
B - Black RD - Red WT - White
BL - Blue GR - Green
Item Number Screw Size Screw Length Head Dia.
29F014S050B 1/4-20 0.5 1.5
29F014S050BL 1/4-20 0.5 1.5
29F014S050GR 1/4-20 0.5 1.5
29F014S050RD 1/4-20 0.5 1.5
29F014S050WT 1/4-20 0.5 1.5
29F014S075B 1/4-20 0.75 1.5
29F014S075BL 1/4-20 0.75 1.5
29F014S075GR 1/4-20 0.75 1.5
29F014S075RD 1/4-20 0.75 1.5
29F014S075WT 1/4-20 0.75 1.5
29F014S100B 1/4-20 1 1.5
29F014S100BL 1/4-20 1 1.5
29F014S100GR 1/4-20 1 1.5
29F014S100RD 1/4-20 1 1.5
29F014S100WT 1/4-20 1 1.5
29F014S150B 1/4-20 1.5 1.5
29F014S150BL 1/4-20 1.5 1.5
29F014S150GR 1/4-20 1.5 1.5
29F014S150RD 1/4-20 1.5 1.5
29F014S150WT 1/4-20 1.5 1.5
29F038S075B 3/8-16 0.75 1.5
29F038S075BL 3/8-16 0.75 1.5
29F038S075GR 3/8-16 0.75 1.5
29F038S075RD 3/8-16 0.75 1.5
29F038S075WT 3/8-16 0.75 1.5



Item Number Screw Size Screw Length Head Dia.
29F038S100B 3/8-16 1 1.5
29F038S100BL 3/8-16 1 1.5
29F038S100GR 3/8-16 1 1.5
29F038S100RD 3/8-16 1 1.5
29F038S100WT 3/8-16 1 1.5
29F038S150B 3/8-16 1.5 1.5
29F038S150BL 3/8-16 1.5 1.5
29F038S150GR 3/8-16 1.5 1.5
29F038S150RD 3/8-16 1.5 1.5
29F038S150WT 3/8-16 1.5 1.5
29F516S050B 5/16-18 0.5 1.5
29F516S050BL 5/16-18 0.5 1.5
29F516S050GR 5/16-18 0.5 1.5
29F516S050RD 5/16-18 0.5 1.5
29F516S050WT 5/16-18 0.5 1.5
29F516S075B 5/16-18 0.75 1.5
29F516S075BL 5/16-18 0.75 1.5
29F516S075GR 5/16-18 0.75 1.5
29F516S075RD 5/16-18 0.75 1.5
29F516S075WT 5/16-18 0.75 1.5
29F516S100B 5/16-18 1 1.5
29F516S100BL 5/16-18 1 1.5
29F516S100GR 5/16-18 1 1.5
29F516S100RD 5/16-18 1 1.5
29F516S100WT 5/16-18 1 1.5



Item Number Screw Size Screw Length Head Dia.
29F516S150B 5/16-18 1.5 1.5
29F516S150BL 5/16-18 1.5 1.5
29F516S150GR 5/16-18 1.5 1.5
29F516S150RD 5/16-18 1.5 1.5
29F516S150WT 5/16-18 1.5 1.5
