Hex Bolts:

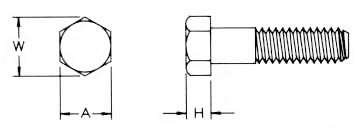

Drawing 1: hexcpdrw.jpg
Thread Size A W H
1/4 .425 - .438 .484 - .505 .150 - .188
5/16 .484 - .500 .552 - .577 .195 - .235
3/8 .544 - .562 .620 - .650 .226 - .268
1/2 .725 - .750 .826 - .866 .302 - .364
5/8 .906 - .938 1.033 - 1.083 .378 - .444
3/4 1.088 - 1.125 1.240 - 1.299 .455 - .524
7/8 1.269 - 1.312 1.447 - 1.516 .531 - .604

Item Number Description
0325020037 1/4-20 X 0.375
0325020050 1/4-20 X 0.5
0325020062 1/4-20 X 0.625
0325020075 1/4-20 X 0.75
0325020100 1/4-20 X 1
0325020125 1/4-20 X 1.25
0325020150 1/4-20 X 1.5
0325020200 1/4-20 X 2
0325020250 1/4-20 X 2.5
0325020250FT 1/4-20 X 2.5
0325020275 1/4-20 X 2.75
0325020300 1/4-20 X 3
0325020350 1/4-20 X 3.5
0325020400 1/4-20 X 4
0325020450 1/4-20 X 4.5
0325020500 1/4-20 X 5
0325020550 1/4-20 X 5.5
0325020600 1/4-20 X 6
0331218050 5/16-18 X 0.5
0331218075 5/16-18 X 0.75
0331218100 5/16-18 X 1
0331218125 5/16-18 X 1.25
0331218137 5/16-18 X 1.375
0331218150 5/16-18 X 1.5
0331218200 5/16-18 X 2



Item Number Description
0331218250 5/16-18 X 2.5
0331218300 5/16-18 X 3
0331218350 5/16-18 X 3.5
0331218400 5/16-18 X 4
0331218450 5/16-18 X 4.5
0331218500 5/16-18 X 5
0331218550 5/16-18 X 5.5
0331218600 5/16-18 X 6
0331224050 5/16-24 X 0.5
0337516050 3/8-16 X 0.5
0337516075 3/8-16 X 0.75
0337516100 3/8-16 X 1
0337516125 3/8-16 X 1.25
0337516150 3/8-16 X 1.5
0337516200 3/8-16 X 2
0337516200FT 3/8-16 X 2
0337516250 3/8-16 X 2.5
0337516300 3/8-16 X 3
0337516350 3/8-16 X 3.5
0337516400 3/8-16 X 4
0337516450 3/8-16 X 4.5
0337516500 3/8-16 X 5
0337516550 3/8-16 X 5.5
0337516600 3/8-16 X 6
0337524050 3/8-24 X 0.5



Item Number Description
0350013050 1/2-13 X 0.5
0350013075 1/2-13 X 0.75
0350013087 1/2-13 X 0.875
0350013100 1/2-13 X 1
0350013125 1/2-13 X 1.25
0350013150 1/2-13 X 1.5
0350013175 1/2-13 X 1.75
0350013200 1/2-13 X 2
0350013250 1/2-13 X 2.5
0350013300 1/2-13 X 3
0350013350 1/2-13 X 3.5
0350013400 1/2-13 X 4
0350013450 1/2-13 X 4.5
0350013500 1/2-13 X 5
0350013550 1/2-13 X 5.5
0350013600 1/2-13 X 6
0362511050 5/8-11 X 0.5
0362511075 5/8-11 X 0.75
0362511100 5/8-11 X 1
0362511150 5/8-11 X 1.5
0362511200 5/8-11 X 2
0362511250 5/8-11 X 2.5
0362511300 5/8-11 X 3
0362511350 5/8-11 X 3.5
0362511400 5/8-11 X 4



Item Number Description
0362511400FT 5/8-11 X 4
0362511450 5/8-11 X 4.5
0362511500 5/8-11 X 5
0362511550 5/8-11 X 5.5
0362511600 5/8-11 X 6
0375010075 3/4-10 X 0.75
0375010400FT 3/4-10 X 4
0375010550 3/4-10 X 5.5
0387509075 7/8-9 X 0.75
0387509450FT 7/8-9 X 4.5
