Nylon Locking Hole Plugs are available in a large selection of sizes
from 3/16" to 2 1/2". These hole plugs are designed with
multiple locks to positively snap in panel thicknesses ranging from
1/64" to 1/8". Locking Hole Plugs are used to close excess
chassis holes, wiring outlets, and production access holes. These hole
plugs are molded of heat stabilized nylon (UL94V2), and may be more
suitable for critical or elevated temperature applications. Vent Plugs
are available in the 3/4", 7/8" and 1" diameters.
Locking Hole Plugs are stocked in black. Other colors are available in
volume requirements.

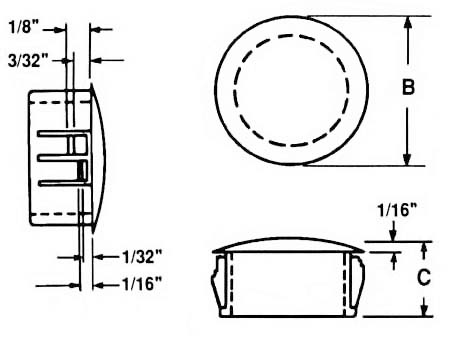

+/- .015 on all dimensions
| Item Number |
Hole Diameter |
Maximum Thickness |
Head Diameter B (+/- .015) |
Thickness C (+/- .015) |
| 62MP0187 |
0.187 |
0.062 |
0.25 |
0.234 |
| 62MP0250 |
0.25 |
0.062 |
0.312 |
0.312 |
| 62MP0312 |
0.312 |
0.062 |
0.375 |
0.312 |
| 62MP0375 |
0.375 |
0.125 |
0.468 |
0.406 |
| 62MP0437 |
0.437 |
0.125 |
0.531 |
0.406 |
| 62MP0500 |
0.5 |
0.125 |
0.578 |
0.406 |
| 62MP0562 |
0.562 |
0.125 |
0.656 |
0.406 |
| 62MP0625 |
0.625 |
0.125 |
0.718 |
0.406 |
| 62MP0687 |
0.687 |
0.125 |
0.781 |
0.406 |
| 62MP0750 |
0.75 |
0.125 |
0.922 |
0.406 |
| 62MP0812 |
0.812 |
0.125 |
0.89 |
0.406 |
| 62MP0875 |
0.875 |
0.125 |
1.016 |
0.453 |
| 62MP1000 |
1 |
0.125 |
1.203 |
0.453 |
| 62MP1093 |
1.125 |
0.125 |
1.218 |
0.453 |
| 62MP1187 |
1.187 |
0.125 |
1.312 |
0.453 |
| 62MP1250 |
1.25 |
0.125 |
1.375 |
0.453 |
| 62MP1375 |
1.375 |
0.125 |
1.5 |
0.453 |
| 62MP1500 |
1.5 |
0.125 |
1.672 |
0.453 |
| 62MP1750 |
1.75 |
0.125 |
1.925 |
0.453 |
| 62MP2000 |
2 |
0.125 |
2.14 |
0.453 |
| 62MP2500 |
2.5 |
0.25 |
2.775 |
0.75 |
|
