Metric Phillips
Flat Machine Screws:
 |

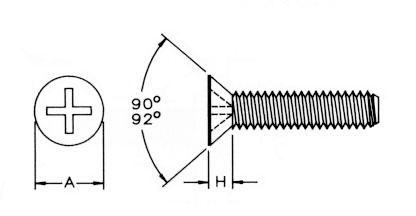

| Thread Size |
A |
H* |
| M2.5 X 0.45 |
4.4 - 5.5 |
1.5 Max. Ref. |
| M3 X 0.5 |
5.2 - 6.3 |
1.7 Max. Ref. |
| M3.5 X 0.6 |
6.9 - 8.2 |
2.3 Max. Ref. |
| M4 X 0.7 |
8.0 - 9.4 |
2.7 Max. Ref. |
| M5 X 0.8 |
8.9 - 10.4 |
2.7 Max. Ref. |
| M6 X 1.0 |
10.9 - 12.6 |
3.3 Max. Ref. |
| M8 X 1.25 |
15.4 - 17.3 |
4.6 Max. Ref. |
| M10 X 1.50 |
17.8 - 20.0 |
5.0 Max. Ref. |
|
* "H" Dimension is a Reference Dimension Only
All Dimensions are in Millimeters
| Item Number |
Description |
| 50M025045I004 |
M2.5 X .45 X 4MM |
| 50M025045I005 |
M2.5 X .45 X 5MM |
| 50M025045I006 |
M2.5 X .45 X 6MM |
| 50M025045I008 |
M2.5 X .45 X 8MM |
| 50M025045I010 |
M2.5 X .45 X 10MM |
| 50M025045I012 |
M2.5 X .45 X 12MM |
| 50M025045I016 |
M2.5 X .45 X 16MM |
| 50M025045I020 |
M2.5 X .45 X 20MM |
| 50M025045I025 |
M2.5 X .45 X 25MM |
| 50M030050I005 |
M3 X .5 X 5MM |
| 50M030050I006 |
M3 X .5 X 6MM |
| 50M030050I008 |
M3 X .5 X 8MM |
| 50M030050I010 |
M3 X .5 X 10MM |
| 50M030050I012 |
M3 X .5 X 12MM |
| 50M030050I016 |
M3 X .5 X 16MM |
| 50M030050I020 |
M3 X .5 X 20MM |
| 50M030050I025 |
M3 X .5 X 25MM |
| 50M035060I005 |
M3.5 X .6 X 5MM |
| 50M035060I006 |
M3.5 X .6 X 6MM |
| 50M035060I008 |
M3.5 X .6 X 8MM |
| 50M035060I010 |
M3.5 X .6 X 10MM |
| 50M035060I012 |
M3.5 X .6 X 12MM |
| 50M035060I016 |
M3.5 X .6 X 16MM |
| 50M035060I020 |
M3.5 X .6 X 20MM |
| 50M035060I025 |
M3.5 X .6 X 25MM |
| Item Number |
Description |
| 50M035060I035 |
M3.5 X .6 X 35MM |
| 50M040070I006 |
M4 X .7 X 6MM |
| 50M040070I008 |
M4 X .7 X 8MM |
| 50M040070I010 |
M4 X .7 X 10MM |
| 50M040070I012 |
M4 X .7 X 12MM |
| 50M040070I016 |
M4 X .7 X 16MM |
| 50M040070I020 |
M4 X .7 X 20MM |
| 50M040070I025 |
M4 X .7 X 25MM |
| 50M050080I006 |
M5 X .8 X 6MM |
| 50M050080I008 |
M5 X .8 X 8MM |
| 50M050080I010 |
M5 X .8 X 10MM |
| 50M050080I012 |
M5 X .8 X 12MM |
| 50M050080I016 |
M5 X .8 X 16MM |
| 50M050080I020 |
M5 X .8 X 20MM |
| 50M050080I025 |
M5 X .8 X 25MM |
| 50M050080I030 |
M5 X .8 X 30MM |
| 50M050080I040 |
M5 X .8 X 40MM |
| 50M060100I008 |
M6 X 1.00 X 8MM |
| 50M060100I010 |
M6 X 1.00 X 10MM |
| 50M060100I012 |
M6 X 1.00 X 12MM |
| 50M060100I016 |
M6 X 1.00 X 16MM |
| 50M060100I020 |
M6 X 1.00 X 20MM |
| 50M060100I025 |
M6 X 1.00 X 25MM |
| 50M060100I035 |
M6 X 1.00 X 35MM |
| 50M060100I045 |
M6 X 1.00 X 45MM |
| Item Number |
Description |
| 50M080125I010 |
M8 X 1.25 X 10MM |
| 50M080125I016 |
M8 X 1.25 X 16MM |
| 50M080125I020 |
M8 X 1.25 X 20MM |
| 50M080125I025 |
M8 X 1.25 X 25MM |
| 50M080125I030 |
M8 X 1.25 X 30MM |
| 50M080125I050 |
M8 X 1.25 X 50MM |
| 50M100150I020 |
M10 X 1.50 X 20MM |
| 50M100150I025 |
M10 X 1.50 X 25MM |
| 50M100150I035 |
M10 X 1.50 X 35MM |
