Metric Phillips Oval Machine Screws:

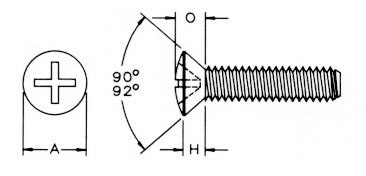

Drawing 1: mtphovdw.jpg
Thread Size A H O
M2.5 X 0.45 4.4 - 5.5 1.5 Max. Ref. 2.1 Max.
M3 X 0.5 5.2 - 6.3 1.7 Max. Ref. 2.4 Max.
M3.5 X 0.6 6.9 - 8.2 2.3 Max. Ref. 3.1 Max.
M4 X 0.7 8.0 - 9.4 2.7 Max. Ref. 3.7 Max.
M5 X 0.8 8.9 - 10.4 2.7 Max. Ref. 3.9 Max.
M6 X 1.0 10.9 - 12.6 3.3 Max. Ref. 4.7 Max.
M8 X 1.25 15.4 - 17.3 4.6 Max. Ref. 6.6 Max.
M10 X 1.50 17.8 - 20.0 5.0 Max. Ref. 7.3 Max.

All Dimensions are in Millimeters

Item Number Description
50M025045M004 M2.5 X .45 X 4MM
50M025045M005 M2.5 X .45 X 5MM
50M025045M006 M2.5 X .45 X 6MM
50M025045M008 M2.5 X .45 X 8MM
50M025045M010 M2.5 X .45 X 10MM
50M025045M012 M2.5 X .45 X 12MM
50M025045M016 M2.5 X .45 X 16MM
50M025045M020 M2.5 X .45 X 20MM
50M025045M025 M2.5 X .45 X 25MM
50M030050M005 M3 X .5 X 5MM
50M030050M006 M3 X .5 X 6MM
50M030050M008 M3 X .5 X 8MM
50M030050M010 M3 X .5 X 10MM
50M030050M012 M3 X .5 X 12MM
50M030050M016 M3 X .5 X 16MM
50M030050M020 M3 X .5 X 20MM
50M030050M025 M3 X .5 X 25MM
50M035060M005 M3.5 X .6 X 5MM
50M035060M006 M3.5 X .6 X 6MM
50M035060M008 M3.5 X .6 X 8MM
50M035060M010 M3.5 X .6 X 10MM
50M035060M016 M3.5 X .6 X 16MM
50M035060M020 M3.5 X .6 X 20MM
50M035060M025 M3.5 X .6 X 25MM
50M035060M035 M3.5 X .6 X 35MM



Item Number Description
50M040070M006 M4 X .7 X 6MM
50M040070M008 M4 X .7 X 8MM
50M040070M010 M4 X .7 X 10MM
50M040070M012 M4 X .7 X 12MM
50M040070M016 M4 X .7 X 16MM
50M040070M020 M4 X .7 X 20MM
50M040070M025 M4 X .7 X 25MM
50M050080M006 M5 X .8 X 6MM
50M050080M008 M5 X .8 X 8MM
50M050080M010 M5 X .8 X 10MM
50M050080M012 M5 X .8 X 12MM
50M050080M016 M5 X .8 X 16MM
50M050080M020 M5 X .8 X 20MM
50M050080M025 M5 X .8 X 25MM
50M050080M030 M5 X .8 X 30MM
50M050080M040 M5 X .8 X 40MM
50M060100M008 M6 X 1.00 X 8MM
50M060100M010 M6 X 1.00 X 10MM
50M060100M012 M6 X 1.00 X 12MM
50M060100M016 M6 X 1.00 X 16MM
50M060100M020 M6 X 1.00 X 20MM
50M060100M025 M6 X 1.00 X 25MM
50M060100M035 M6 X 1.00 X 35MM
50M060100M045 M6 X 1.00 X 45MM
50M080125M010 M8 X 1.25 X 10MM



Item Number Description
50M080125M016 M8 X 1.25 X 16MM
50M080125M020 M8 X 1.25 X 20MM
50M080125M025 M8 X 1.25 X 25MM
50M080125M030 M8 X 1.25 X 30MM
50M080125M050 M8 X 1.25 X 50MM
50M100150M020 M10 X 1.50 X 20MM
50M100150M025 M10 X 1.50 X 25MM
50M100150M035 M10 X 1.50 X 35MM
