Metric Slotted Flat Machine Screws:

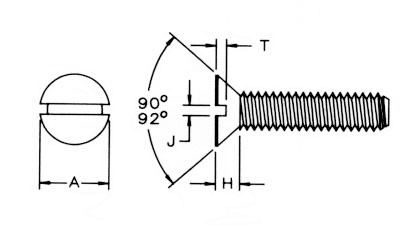

Drawing 1: msfltdrw.jpg
Thread Size A H J T
M2 X 0.4 3.5 - 4.4 1.2 Max. Ref. 0.5 - 0.7 0.4 - 0.6
M2.5 X 0.45 4.4 - 5.5 1.5 Max. Ref. 0.6 - 0.8 0.5 - 0.7
M3 X 0.5 5.2 - 6.3 1.7 Max. Ref. 0.8 - 1.0 0.6 - 0.9
M3.5 X 0.6 6.9 - 8.2 2.3 Max. Ref. 1.0 - 1.2 0.9 - 1.2
M4 X 0.7 8.0 - 9.4 2.7 Max. Ref. 1.2 - 1.5 1.0 - 1.3
M5 X 0.8 8.9 - 10.4 2.7 Max. Ref. 1.2 - 1.5 1.1 - 1.4
M6 X 1.0 10.9 - 12.6 3.3 Max. Ref. 1.6 - 1.9 1.2 - 1.6
M8 X 1.25 15.4 - 17.3 4.6 Max. Ref. 2.0 - 2.3 1.8 - 2.3
M10 X 1.50 17.8 - 20.0 5.0 Max. Ref. 2.5 - 2.8 2.0 - 2.6

All Dimensions are in Millimeters

Item Number Description
50M020040H004 M2 X .4 X 4MM
50M020040H005 M2 X .4 X 5MM
50M020040H006 M2 X .4 X 6MM
50M020040H008 M2 X .4 X 8MM
50M020040H010 M2 X .4 X 10MM
50M020040H011 M2 X .4 X 11MM
50M020040H012 M2 X .4 X 12MM
50M020040H016 M2 X .4 X 16MM
50M020040H025 M2 X .4 X 25MM
50M025045H004 M2.5 X .45 X 4MM
50M025045H005 M2.5 X .45 X 5MM
50M025045H006 M2.5 X .45 X 6MM
50M025045H008 M2.5 X .45 X 8MM
50M025045H010 M2.5 X .45 X 10MM
50M025045H012 M2.5 X .45 X 12MM
50M025045H016 M2.5 X .45 X 16MM
50M025045H020 M2.5 X .45 X 20MM
50M025045H025 M2.5 X .45 X 25MM
50M030050H005 M3 X .5 X 5MM
50M030050H006 M3 X .5 X 6MM
50M030050H008 M3 X .5 X 8MM
50M030050H010 M3 X .5 X 10MM
50M030050H012 M3 X .5 X 12MM
50M030050H016 M3 X .5 X 16MM
50M030050H020 M3 X .5 X 20MM



Item Number Description
50M030050H025 M3 X .5 X 25MM
50M030050H030 M3 X .5 X 30MM
50M030050H042 M3 X .5 X 42MM
50M035060H005 M3.5 X .6 X 5MM
50M035060H006 M3.5 X .6 X 6MM
50M035060H008 M3.5 X .6 X 8MM
50M035060H010 M3.5 X .6 X 10MM
50M035060H016 M3.5 X .6 X 16MM
50M035060H025 M3.5 X .6 X 25MM
50M035060H035 M3.5 X .6 X 35MM
50M040070H006 M4 X .7 X 6MM
50M040070H008 M4 X .7 X 8MM
50M040070H010 M4 X .7 X 10MM
50M040070H012 M4 X .7 X 12MM
50M040070H015 M4 X .7 X 15MM
50M040070H016 M4 X .7 X 16MM
50M040070H020 M4 X .7 X 20MM
50M040070H025 M4 X .7 X 25MM
50M040070H030 M4 X .7 X 30MM
50M040070H035 M4 X .7 X 35MM
50M050080H006 M5 X .8 X 6MM
50M050080H008 M5 X .8 X 8MM
50M050080H010 M5 X .8 X 10MM
50M050080H012 M5 X .8 X 12MM
50M050080H015 M5 X .8 X 15MM



Item Number Description
50M050080H016 M5 X .8 X 16MM
50M050080H020 M5 X .8 X 20MM
50M050080H025 M5 X .8 X 25MM
50M050080H030 M5 X .8 X 30MM
50M050080H040 M5 X .8 X 40MM
50M060100H008 M6 X 1.00 X 8MM
50M060100H010 M6 X 1.00 X 10MM
50M060100H012 M6 X 1.00 X 12MM
50M060100H016 M6 X 1.00 X 16MM
50M060100H020 M6 X 1.00 X 20MM
50M060100H025 M6 X 1.00 X 25MM
50M060100H035 M6 X 1.00 X 35MM
50M060100H040 M6 X 1.00 X 40MM
50M060100H045 M6 X 1.00 X 45MM
50M060100H050 M6 X 1.00 X 50MM
50M080125H016 M8 X 1.25 X 16MM
50M080125H020 M8 X 1.25 X 20MM
50M080125H025 M8 X 1.25 X 25MM
50M080125H030 M8 X 1.25 X 30MM
50M080125H050 M8 X 1.25 X 50MM
50M100150H020 M10 X 1.50 X 20MM
50M100150H025 M10 X 1.50 X 25MM
50M100150H030 M10 X 1.50 X 30MM
50M100150H035 M10 X 1.50 X 35MM
50M100150H060 M10 X 1.50 X 60MM
