Metric Slotted Oval Machine Screws:

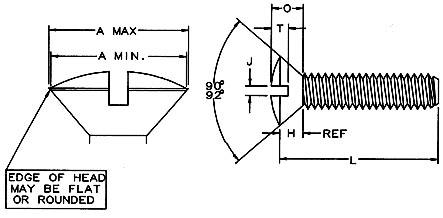

Drawing 1: mtsovldw.jpg
Thread Size A H O J T
M2 X 0.4 3.5 - 4.4 1.2 Max. Ref. 1.7 Max. 0.5 - 0.7 0.8 - 1.0
M2.5 X 0.45 4.4 - 5.5 1.5 Max. Ref. 2.1 Max 0.6 - 0.8 1.0 - 1.2
M3 X 0.5 5.2 - 6.3 1.7 Max. Ref. 2.4 Max. Ref. 0.8 - 1.0 1.2 - 1.5
M3.5 X 0.6 6.9 - 8.2 2.3 Max. Ref. 3.1 Max. 1.0 - 1.2 1.4 - 1.7
M4 X 0.7 8.0 - 9.4 2.7 Max. Ref. 3.7 Max. 1.2 - 1.5 1.6 - 1.9
M5 X 0.8 8.9 - 10.4 2.7 Max. Ref. 3.9 Max. 1.2 - 1.5 2.0 - 2.4
M6 X 1.0 10.9 - 12.6 3.3 Max. Ref. 4.7 Max. 1.6 - 1.9 2.4 - 2.8
M8 X 1.25 15.4 - 17.3 4.6 Max. Ref. 6.6 Max. 2.0 - 2.3 3.2 - 3.7
M10 X 1.5 17.8 - 20.0 5.0 Max. Ref. 7.3 Max. 2.5 - 2.8 3.8 - 4.4

All Dimensions are in Millimeters

Item Number Description
50M020040L004 M2 X .4 X 4MM
50M020040L005 M2 X .4 X 5MM
50M020040L006 M2 X .4 X 6MM
50M020040L008 M2 X .4 X 8MM
50M020040L010 M2 X .4 X 10MM
50M020040L011 M2 X .4 X 11MM
50M020040L012 M2 X .4 X 12MM
50M020040L016 M2 X .4 X 16MM
50M020040L025 M2 X .4 X 25MM
50M025045L004 M2.5 X .45 X 4MM
50M025045L005 M2.5 X .45 X 5MM
50M025045L006 M2.5 X .45 X 6MM
50M025045L008 M2.5 X .45 X 8MM
50M025045L010 M2.5 X .45 X 10MM
50M025045L012 M2.5 X .45 X 12MM
50M025045L016 M2.5 X .45 X 16MM
50M025045L020 M2.5 X .45 X 20MM
50M025045L025 M2.5 X .45 X 25MM
50M030050L005 M3 X .5 X 5MM
50M030050L006 M3 X .5 X 6MM
50M030050L008 M3 X .5 X 8MM
50M030050L010 M3 X .5 X 10MM
50M030050L012 M3 X .5 X 12MM
50M030050L015 M3 X .5 X 15MM
50M030050L016 M3 X .5 X 16MM



Item Number Description
50M030050L020 M3 X .5 X 20MM
50M030050L025 M3 X .5 X 25MM
50M030050L030 M3 X .5 X 30MM
50M030050L042 M3 X .5 X 42MM
50M035060L006 M3.5 X .6 X 6MM
50M035060L008 M3.5 X .6 X 8MM
50M035060L010 M3.5 X .6 X 10MM
50M035060L016 M3.5 X .6 X 16MM
50M035060L020 M3.5 X .6 X 20MM
50M035060L025 M3.5 X .6 X 25MM
50M035060L035 M3.5 X .6 X 35MM
50M040070L006 M4 X .7 X 6MM
50M040070L008 M4 X .7 X 8MM
50M040070L010 M4 X .7 X 10MM
50M040070L012 M4 X .7 X 12MM
50M040070L015 M4 X .7 X 15MM
50M040070L016 M4 X .7 X 16MM
50M040070L020 M4 X .7 X 20MM
50M040070L025 M4 X .7 X 25MM
50M040070L030 M4 X .7 X 30MM
50M040070L035 M4 X .7 X 35MM
50M050080L006 M5 X .8 X 6MM
50M050080L008 M5 X .8 X 8MM
50M050080L010 M5 X .8 X 10MM
50M050080L012 M5 X .8 X 12MM



Item Number Description
50M050080L015 M5 X .8 X 15MM
50M050080L016 M5 X .8 X 16MM
50M050080L020 M5 X .8 X 20MM
50M050080L025 M5 X .8 X 25MM
50M050080L030 M5 X .8 X 30MM
50M050080L035 M5 X .8 X 35MM
50M050080L040 M5 X .8 X 40MM
50M060100L008 M6 X 1.00 X 8MM
50M060100L010 M6 X 1.00 X 10MM
50M060100L012 M6 X 1.00 X 12MM
50M060100L016 M6 X 1.00 X 16MM
50M060100L020 M6 X 1.00 X 20MM
50M060100L025 M6 X 1.00 X 25MM
50M060100L035 M6 X 1.00 X 35MM
50M060100L040 M6 X 1.00 X 40MM
50M060100L045 M6 X 1.00 X 45MM
50M060100L050 M6 X 1.00 X 50MM
50M080125L016 M8 X 1.25 X 16MM
50M080125L020 M8 X 1.25 X 20MM
50M080125L025 M8 X 1.25 X 25MM
50M080125L030 M8 X 1.25 X 30MM
50M080125L050 M8 X 1.25 X 50MM
50M100150L020 M10 X 1.50 X 20MM
50M100150L025 M10 X 1.50 X 25MM
50M100150L030 M10 X 1.50 X 30MM



Item Number Description
50M100150L035 M10 X 1.50 X 35MM
50M100150L060 M10 X 1.50 X 60MM
