Port Cover:
Port Covers are available in black Polyethylene. Used
to cover 15 pin female COM and Video ports to prevent damage from foreign
materials. Part does not have to be oriented to the angled side wall of the
port.

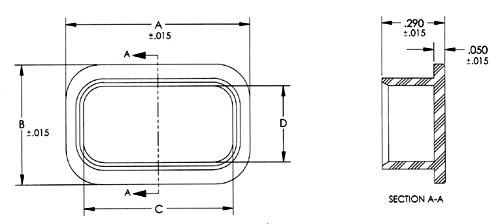

Item Number | Description | A | B | C | D |
62PC0009 | 9 Pin Male Port Cover | 0.85 | 0.55 | 0.69 | 0.35 |
62PC0015 | 15 Pin Female Port Cover | 0.825 | 0.488 | 0.632 | 0.297 |
