Ratcheting Action Rivets:

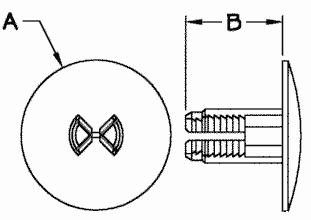

Drawing 1: rarivdw.gif

Ratcheting action rivets feature a rigid design which provides an outstanding bond created by the action of the interlocking gripper teeth. With the larger head diameter, ratcheting action rivets make binding of soft materials a simple application.

Ratcheting Action Rivets are available in Black or Natural.
Code B = Black; Code N = Natural
Item Number Grip Range Head Dia. A (Ref.) Shank Length B (Ref.) Hole Dia.
27QB400250B .235 / .297 0.406 0.219 0.281
27QB400250N .235 / .297 0.406 0.219 0.281
27QB400375B .346 / .500 0.406 0.344 0.281
27QB400375N .346 / .500 0.406 0.344 0.281
27QB400750B .500 / .812 0.406 0.5 0.281
27QB400750N .500 / .812 0.406 0.5 0.281
27QB401000B .780 / 1.375 0.406 0.75 0.281
27QB401000N .780 / 1.375 0.406 0.75 0.281
27QB700250B .235 / .297 0.75 0.219 0.281
27QB700250N .235 / .297 0.75 0.219 0.281
27QB700375B .346 / .500 0.75 0.344 0.281
27QB700375N .346 / .500 0.75 0.344 0.281
27QB700750B .500 / .812 0.75 0.5 0.281
27QB700750N .500 / .812 0.75 0.5 0.281
27QB701000B .780 / 1.375 0.75 0.75 0.281
27QB701000N .780 / 1.375 0.75 0.75 0.281
