Removable Rivets:

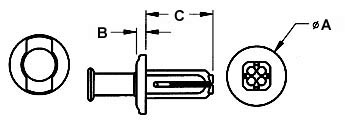

Drawing 1: remriv.jpg

Removable Rivets are two-piece nylon rivets which can be removed by retracting the pin, and then the body. The body incorporates a slot in line with the pin so that the pin can be removed by inserting a small screw driver, other sharp edge, or even a fingernail underneath the head of the pin. P/N 61RR250500 in addition to working in a .250 round hole, will also fit the .210"/.218" square hole found in the "darling" type shelf commonly found in retail stores.

Item Number A (+/-.015) B C (+/- 1/32) Hole Size Panel Thickness
61RR188062 0.375 0.07 0.5 0.188 0.0625
61RR188125 0.375 0.07 0.5 0.188 0.125
61RR250125 0.4375 0.07 0.5 0.25 0.125
61RR250188 0.4375 0.07 0.5 0.25 0.1875
61RR250500 0.4375 0.07 0.48 0.188 0.0625
