Round Thumb Screw w/ 1/4-20 Hex Head Cap Screw:

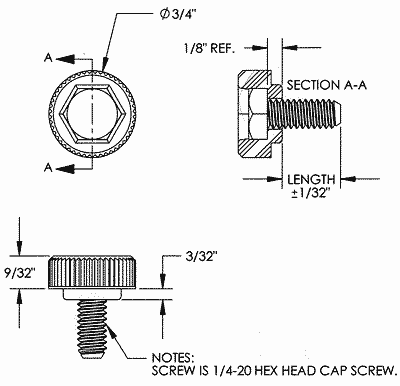

Drawing 1: RN_BoltDwg.gif

Item Number Length Color
29RN147S025B 1/4" Black
29RN147S025N 1/4" Natural
29RN147S025WT 1/4" White
29RN147S037B 3/8" Black
29RN147S037N 3/8" Natural
29RN147S037WT 3/8" White
29RN147S050B 1/2" Black
29RN147S050N 1/2" Natural
29RN147S050WT 1/2" White
29RN147S062B 5/8" Black
29RN147S062N 5/8" Natural
29RN147S062WT 5/8" White
29RN147S075B 3/4" Black
29RN147S075N 3/4" Natural
29RN147S075WT 3/4" White
29RN147S087B 7/8" Black
29RN147S087N 7/8" Natural
29RN147S087WT 7/8" White
