Slotted Binder Machine Screws:

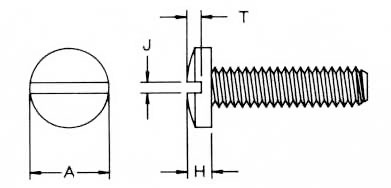

Drawing 1: binddrw.jpg
Thread Size A H J T
2 .171 - .181 .043 - .050 .023 - .031 .020 - .030
4 .223 - .235 .061 - .068 .031 - .039 .030 - .042
6 .275 - .290 .078 - .087 .039 - .048 .040 - .053
8 .326 - .344 .095 - .105 .045 - .054 .050 - .065
10 .379 - .399 .112 - .123 .050 - .060 .060 - .077
1/4 .498 - .525 .152 - .165 .064 - .075 .084 - .105

Item Number Description
010256B009 2-56 X 0.093
010256B012 2-56 X 0.125
010256B015 2-56 X 0.156
010256B018 2-56 X 0.1875
010256B025 2-56 X 0.25
010256B028 2-56 X 0.281
010256B031 2-56 X 0.3125
010256B037 2-56 X 0.375
010256B039 2-56 X 0.391
010256B043 2-56 X 0.4375
010256B050 2-56 X 0.5
010256B056 2-56 X 0.5625
010256B062 2-56 X 0.625
010256B075 2-56 X 0.75
010256B087 2-56 X 0.875
010256B100 2-56 X 1
010256B112 2-56 X 1.125
010264B018 2-64 X 0.1875
010264B037 2-64 X 0.375
010436B050 4-36 X 0.5
010440B009 4-40 X 0.09375
010440B012 4-40 X 0.125
010440B014 4-40 X 0.141
010440B018 4-40 X 0.1875
010440B025 4-40 X 0.25



Item Number Description
010440B028 4-40 X 0.281
010440B031 4-40 X 0.3125
010440B037 4-40 X 0.375
010440B043 4-40 X 0.4375
010440B050 4-40 X 0.5
010440B056 4-40 X 0.5625
010440B062 4-40 X 0.625
010440B068 4-40 X 0.6875
010440B075 4-40 X 0.75
010440B087 4-40 X 0.875
010440B100 4-40 X 1
010440B112 4-40 X 1.125
010440B118 4-40 X 1.1875
010440B125 4-40 X 1.25
010440B137 4-40 X 1.375
010440B150 4-40 X 1.5
010440B162 4-40 X 1.625
010440B175 4-40 X 1.75
010448B025 4-48 X 0.25
010632B009 6-32 X 0.09375
010632B012 6-32 X 0.125
010632B015 6-32 X 0.156
010632B018 6-32 X 0.1875
010632B025 6-32 X 0.25
010632B031 6-32 X 0.3125



Item Number Description
010632B037 6-32 X 0.375
010632B043 6-32 X 0.4375
010632B050 6-32 X 0.5
010632B056 6-32 X 0.5625
010632B062 6-32 X 0.625
010632B068 6-32 X 0.6875
010632B075 6-32 X 0.75
010632B087 6-32 X 0.875
010632B100 6-32 X 1
010632B112 6-32 X 1.125
010632B125 6-32 X 1.25
010632B150 6-32 X 1.5
010632B162 6-32 X 1.625
010632B175 6-32 X 1.75
010632B187 6-32 X 1.875
010632B200 6-32 X 2
010632B225 6-32 X 2.25
010640B025 6-40 X 0.25
010640B037 6-40 X 0.375
010640B075 6-40 X 0.75
010640B100 6-40 X 1
010832B012 8-32 X 0.125
010832B018 8-32 X 0.1875
010832B025 8-32 X 0.25
010832B028 8-32 X 0.281



Item Number Description
010832B031 8-32 X 0.3125
010832B037 8-32 X 0.375
010832B043 8-32 X 0.4375
010832B050 8-32 X 0.5
010832B062 8-32 X 0.625
010832B075 8-32 X 0.75
010832B087 8-32 X 0.875
010832B100 8-32 X 1
010832B112 8-32 X 1.125
010832B125 8-32 X 1.25
010832B137 8-32 X 1.375
010832B150 8-32 X 1.5
010832B175 8-32 X 1.75
010832B187 8-32 X 1.875
010832B200 8-32 X 2
011024B012 10-24 X 0.125
011024B018 10-24 X 0.1875
011024B025 10-24 X 0.25
011024B031 10-24 X 0.3125
011024B037 10-24 X 0.375
011024B050 10-24 X 0.5
011024B062 10-24 X 0.625
011024B075 10-24 X 0.75
011024B100 10-24 X 1
011024B125 10-24 X 1.25



Item Number Description
011024B150 10-24 X 1.5
011032B012 10-32 X 0.125
011032B018 10-32 X 0.1875
011032B025 10-32 X 0.25
011032B031 10-32 X 0.3125
011032B037 10-32 X 0.375
011032B043 10-32 X 0.4375
011032B050 10-32 X 0.5
011032B062 10-32 X 0.625
011032B075 10-32 X 0.75
011032B081 10-32 X 0.8125
011032B087 10-32 X 0.875
011032B100 10-32 X 1
011032B125 10-32 X 1.25
011032B150 10-32 X 1.5
011032B175 10-32 X 1.75
011032B200 10-32 X 2
012520B025 1/4-20 X 0.25
012520B031 1/4-20 X 0.3125
012520B037 1/4-20 X 0.375
012520B050 1/4-20 X 0.5
012520B062 1/4-20 X 0.625
012520B075 1/4-20 X 0.75
012520B087 1/4-20 X 0.875
012520B100 1/4-20 X 1



Item Number Description
012520B125 1/4-20 X 1.25
012520B150 1/4-20 X 1.5
012520B175 1/4-20 X 1.75
012520B200 1/4-20 X 2
012520B250 1/4-20 X 2.5
012528B018 1/4-28 X 0.1875
012528B025 1/4-28 X 0.25
012528B037 1/4-28 X 0.375
012528B062 1/4-28 X 0.625
012528B075 1/4-28 X 0.75
012528B100 1/4-28 X 1
