Slotted Fillister Head Metric Machine Screws:

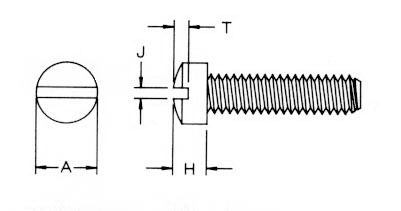

Drawing 1: mtfilldw.jpg
Thread Size A H J T
M2 X 0.4 3.8 1.60 0.60 0.90
M2.5 X 0.45 5.0 2.00 0.70 1.10
M3 X 0.5 6.0 2.40 1.00 1.30
M3.5 X 0.6 7.0 2.70 1.10 1.40
M4 X 0.7 8.0 3.10 1.20 1.60
M5 X 0.8 9.4 3.80 1.50 2.00
M6 X 1.0 12.0 4.60 1.90 2.30
M8 X 1.25 16.0 6.00 2.30 2.80
M10 X 1.50 20.0 7.50 2.80 3.20

Item Number Description
50M020040F004 M2 X .4 X 4MM
50M020040F005 M2 X .4 X 5MM
50M020040F006 M2 X .4 X 6MM
50M020040F008 M2 X .4 X 8MM
50M020040F010 M2 X .4 X 10MM
50M020040F012 M2 X .4 X 12MM
50M020040F016 M2 X .4 X 16MM
50M020040F020 M2 X .4 X 20MM
50M020040F025 M2 X .4 X 25MM
50M025045F004 M2.5 X .45 X 4MM
50M025045F005 M2.5 X .45 X 5MM
50M025045F006 M2.5 X .45 X 6MM
50M025045F008 M2.5 X .45 X 8MM
50M025045F010 M2.5 X .45 X 10MM
50M025045F012 M2.5 X .45 X 12MM
50M025045F016 M2.5 X .45 X 16MM
50M025045F020 M2.5 X .45 X 20MM
50M025045F025 M2.5 X .45 X 25MM
50M030050F004 M3 X .5 X 4MM
50M030050F005 M3 X .5 X 5MM
50M030050F006 M3 X .5 X 6MM
50M030050F008 M3 X .5 X 8MM
50M030050F010 M3 X .5 X 10MM
50M030050F012 M3 X .5 X 12MM
50M030050F016 M3 X .5 X 16MM



Item Number Description
50M030050F020 M3 X .5 X 20MM
50M030050F025 M3 X .5 X 25MM
50M030050F030 M3 X .5 X 30MM
50M030050F035 M3 X .5 X 35MM
50M030050F042 M3 X .5 X 42MM
50M035060F005 M3.5 X .6 X 5MM
50M035060F006 M3.5 X .6 X 6MM
50M035060F007 M3.5 X .6 X 7MM
50M035060F008 M3.5 X .6 X 8MM
50M035060F010 M3.5 X .6 X 10MM
50M035060F012 M3.5 X .6 X 12MM
50M035060F016 M3.5 X .6 X 16MM
50M035060F020 M3.5 X .6 X 20MM
50M035060F025 M3.5 X .6 X 25MM
50M035060F035 M3.5 X .6 X 35MM
50M035060F042 M3.5 X .6 X 42MM
50M040070F003 M4 X .7 X 3MM
50M040070F006 M4 X .7 X 6MM
50M040070F008 M4 X .7 X 8MM
50M040070F010 M4 X .7 X 10MM
50M040070F012 M4 X .7 X 12MM
50M040070F016 M4 X .7 X 16MM
50M040070F020 M4 X .7 X 20MM
50M040070F025 M4 X .7 X 25MM
50M040070F030 M4 X .7 X 30MM



Item Number Description
50M040070F035 M4 X .7 X 35MM
50M040070F040 M4 X .7 X 40MM
50M050080F006 M5 X .8 X 6MM
50M050080F008 M5 X .8 X 8MM
50M050080F010 M5 X .8 X 10MM
50M050080F012 M5 X .8 X 12MM
50M050080F015 M5 X .8 X 15MM
50M050080F016 M5 X .8 X 16MM
50M050080F020 M5 X .8 X 20MM
50M050080F025 M5 X .8 X 25MM
50M050080F030 M5 X .8 X 30MM
50M050080F035 M5 X .8 X 35MM
50M050080F040 M5 X .8 X 40MM
50M060100F005 M6 X 1.00 X 5MM
50M060100F008 M6 X 1.00 X 8MM
50M060100F010 M6 X 1.00 X 10MM
50M060100F012 M6 X 1.00 X 12MM
50M060100F016 M6 X 1.00 X 16MM
50M060100F020 M6 X 1.00 X 20MM
50M060100F022 M6 X 1.00 X 22MM
50M060100F025 M6 X 1.00 X 25MM
50M060100F030 M6 X 1.00 X 30MM
50M060100F035 M6 X 1.00 X 35MM
50M060100F040 M6 X 1.00 X 40MM
50M060100F045 M6 X 1.00 X 45MM



Item Number Description
50M060100F050 M6 X 1.00 X 50MM
50M060100F060 M6 X 1.00 X 60MM
50M060100F070 M6 X 1.00 X 70MM
50M060100F075 M6 X 1.00 X 75MM
50M080125F010 M8 X 1.25 X 10MM
50M080125F016 M8 X 1.25 X 16MM
50M080125F020 M8 X 1.25 X 20MM
50M080125F025 M8 X 1.25 X 25MM
50M080125F030 M8 X 1.25 X 30MM
50M080125F035 M8 X 1.25 X 35MM
50M080125F050 M8 X 1.25 X 50MM
50M080125F070 M8 X 1.25 X 70MM
50M100150F013 M10 X 1.50 X 13MM
50M100150F016 M10 X 1.50 X 16MM
50M100150F019 M10 X 1.50 X 19MM
50M100150F020 M10 X 1.50 X 20MM
50M100150F025 M10 X 1.50 X 25MM
50M100150F030 M10 X 1.50 X 30MM
50M100150F035 M10 X 1.50 X 35MM
50M100150F050 M10 X 1.50 X 50MM
50M100150F060 M10 X 1.50 X 60MM
