Slotted Set Machine Screws:

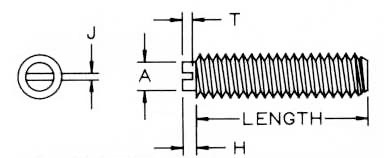

Drawing 1: setdrw.jpg
Thread Size A H J T
2 .055 .035 .018 .020
4 .075 .045 .020 .025
6 .100 .055 .025 .030
8 .120 .055 .028 .035
10 .150 .060 .035 .050
1/4 .175 .080 .040 .060
5/16 .246 .051 .078 .078

Item Number Description
010256S006 2-56 X 0.0625
010256S009 2-56 X 0.09375
010256S012 2-56 X 0.125
010256S015 2-56 X 0.156
010256S018 2-56 X 0.1875
010256S025 2-56 X 0.25
010256S028 2-56 X 0.281
010256S031 2-56 X 0.3125
010256S037 2-56 X 0.375
010256S043 2-56 X 0.4375
010256S050 2-56 X 0.5
010256S056 2-56 X 0.5625
010256S062 2-56 X 0.625
010256S075 2-56 X 0.75
010256S087 2-56 X 0.875
010256S100 2-56 X 1
010256S112 2-56 X 1.125
010264S018 2-64 X 0.1875
010264S037 2-64 X 0.375
010436S050 4-36 X 0.5
010440S009 4-40 X 0.09375
010440S012 4-40 X 0.125
010440S014 4-40 X 0.141
010440S015 4-40 X 0.156
010440S018 4-40 X 0.1875



Item Number Description
010440S025 4-40 X 0.25
010440S028 4-40 X 0.281
010440S031 4-40 X 0.3125
010440S037 4-40 X 0.375
010440S043 4-40 X 0.4375
010440S050 4-40 X 0.5
010440S056 4-40 X 0.5625
010440S062 4-40 X 0.625
010440S068 4-40 X 0.6875
010440S075 4-40 X 0.75
010440S087 4-40 X 0.875
010440S100 4-40 X 1
010440S112 4-40 X 1.125
010440S118 4-40 X 1.1875
010440S125 4-40 X 1.25
010440S137 4-40 X 1.375
010440S150 4-40 X 1.5
010440S162 4-40 X 1.625
010440S175 4-40 X 1.75
010448S025 4-48 X 0.25
010632S009 6-32 X 0.09375
010632S012 6-32 X 0.125
010632S015 6-32 X 0.156
010632S018 6-32 X 0.1875
010632S025 6-32 X 0.25



Item Number Description
010632S031 6-32 X 0.3125
010632S037 6-32 X 0.375
010632S043 6-32 X 0.4375
010632S050 6-32 X 0.5
010632S056 6-32 X 0.5625
010632S062 6-32 X 0.625
010632S068 6-32 X 0.6875
010632S075 6-32 X 0.75
010632S087 6-32 X 0.875
010632S100 6-32 X 1
010632S112 6-32 X 1.125
010632S125 6-32 X 1.25
010632S150 6-32 X 1.5
010632S162 6-32 X 1.625
010632S175 6-32 X 1.75
010632S187 6-32 X 1.875
010632S200 6-32 X 2
010632S225 6-32 X 2.25
010640S025 6-40 X 0.25
010640S037 6-40 X 0.375
010640S075 6-40 X 0.75
010640S100 6-40 X 1
010832S012 8-32 X 0.125
010832S018 8-32 X 0.1875
010832S025 8-32 X 0.25



Item Number Description
010832S028 8-32 X 0.281
010832S031 8-32 X 0.3125
010832S037 8-32 X 0.375
010832S043 8-32 X 0.4375
010832S050 8-32 X 0.5
010832S062 8-32 X 0.625
010832S075 8-32 X 0.75
010832S087 8-32 X 0.875
010832S100 8-32 X 1
010832S112 8-32 X 1.125
010832S125 8-32 X 1.25
010832S137 8-32 X 1.375
010832S150 8-32 X 1.5
010832S175 8-32 X 1.75
010832S187 8-32 X 1.875
010832S200 8-32 X 2
011024S012 10-24 X 0.125
011024S018 10-24 X 0.1875
011024S025 10-24 X 0.25
011024S031 10-24 X 0.3125
011024S037 10-24 X 0.375
011024S050 10-24 X 0.5
011024S062 10-24 X 0.625
011024S075 10-24 X 0.75
011024S100 10-24 X 1



Item Number Description
011024S125 10-24 X 1.25
011024S150 10-24 X 1.5
011032S012 10-32 X 0.125
011032S018 10-32 X 0.1875
011032S025 10-32 X 0.25
011032S031 10-32 X 0.3125
011032S037 10-32 X 0.375
011032S050 10-32 X 0.5
011032S062 10-32 X 0.625
011032S075 10-32 X 0.75
011032S081 10-32 X 0.8125
011032S087 10-32 X 0.875
011032S100 10-32 X 1
011032S125 10-32 X 1.25
011032S150 10-32 X 1.5
011032S175 10-32 X 1.75
011032S200 10-32 X 2
012520S025 1/4-20 X 0.25
012520S031 1/4-20 X 0.3125
012520S037 1/4-20 X 0.375
012520S050 1/4-20 X 0.5
012520S062 1/4-20 X 0.625
012520S075 1/4-20 X 0.75
012520S087 1/4-20 X 0.875
012520S100 1/4-20 X 1



Item Number Description
012520S125 1/4-20 X 1.25
012520S150 1/4-20 X 1.5
012520S175 1/4-20 X 1.75
012520S200 1/4-20 X 2
012520S250 1/4-20 X 2.5
012528S018 1/4-28 X 0.1875
012528S025 1/4-28 X 0.25
012528S037 1/4-28 X 0.375
012528S062 1/4-28 X 0.625
012528S075 1/4-28 X 0.75
012528S100 1/4-28 X 1
0131224S081 5/16-24 X 0.8125
0137524S031 3/8-24 X 0.3125
