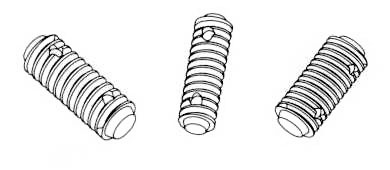

Threaded Studs:
Injection molded threaded studs with chamfer on both
ends are available in several of the most popular sizes and lengths. Threaded
studs are molded in natural Nylon 6/6 UL 94V2. These studs are resistant to most
chemicals, electrically insulating, non-magnetic, lightweight, low thermal
conductivity, vibration and abrasion resistant.
| Item Number | Description | Tolerance |
| 3801032075SD | 10-32 X 0.75 | +0 / -.03 |
| 3801032100SD | 10-32 X 1 | +0 / -.03 |
| 3801032150SD | 10-32 X 1.5 | +0 / -.03 |
| 3801032200SD | 10-32 X 2 | +0 / -.03 |
| 3801032250SD | 10-32 X 2.5 | +0 / -.09 |
| 3825020075SD | 1/4-20 X 0.75 | +0 / -.03 |
| 3825020100SD | 1/4-20 X 1 | +0 / -.03 |
| 3825020150SD | 1/4-20 X 1.5 | +0 / -.06 |
| 3825020200SD | 1/4-20 X 2 | +0 / -.06 |
| 3825020250SD | 1/4-20 X 2.5 | +0 / -.09 |
| 3825020300SD | 1/4-20 X 3 | +0 / -.09 |
| 3831218100SD | 5/16-18 X 1 | +0 / -.03 |
| 3831218150SD | 5/16-18 X 1.5 | +0 / -.06 |
| 3831218200SD | 5/16-18 X 2 | +0 / -.06 |
| 3831218250SD | 5/16-18 X 2.5 | +0 / -.09 |
| 3831218300SD | 5/16-18 X 3 | +0 / -.09 |
| 3837516100SD | 3/8-16 X 1 | +0 / -.03 |
| 3837516150SD | 3/8-16 X 1.5 | +0 / -.06 |
| 3837516200SD | 3/8-16 X 2 | +0 / -.06 |
| 3837516250SD | 3/8-16 X 2.5 | +0 / -.09 |
| 3837516300SD | 3/8-16 X 3 | +0 / -.09 |
| 3837516400SD | 3/8-16 X 4 | +0 / -.09 |
| 3850013150SD | 1/2-13 X 1.5 | +0 / -.06 |
| 3850013200SD | 1/2-13 X 2 | +0 / -.06 |
| 3850013250SD | 1/2-13 X 2.5 | +0 / -.09 |
| Item Number | Description | Tolerance |
| 3850013300SD | 1/2-13 X 3 | +0 / -.09 |
| 3850013400SD | 1/2-13 X 4 | +0 / -.09 |
| 3850013500SD | 1/2-13 X 5 | +0 / -.09 |
