Two-Piece Anchor Rivets:

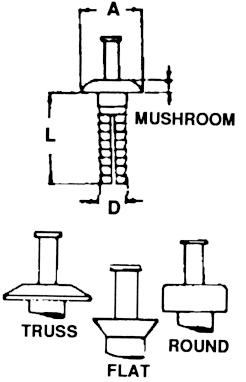

Drawing1: 2pcancdw.jpg
Type A T
Mushroom .540 .110
Round .425 .125
Truss .605 .110
Flat .437 .108

Two piece Anchor Rivets provide versatile, inexpensive, vibration-resistant blind fasteners for solid or hollow materials including wood, concrete, plaster, metal, plastic, tile block, and mortar. Installation is fast, a rivet is inserted in a predrilled hole and tapped with a hammer. The drive pin expands and seats the rivet securely in place. The super-tough nylon anchor body provides high thermal, electrical, corrosion, and vibration resistance.

Typical uses for anchor rivets are semi-trailer construction, liner panels, rails, scuff boards, floor plates, electrical fixtures, signs, plumbing fixtures, piping and conduit strap hangers, window and drapery hardware, railings, storage shelves, and other assemblies requiring a positive, durable fastener.

Parts are stocked in appliance white.

Steel Drive Pin - High strength, zinc plated. Develops high-pull out force.

Plastic Drive Pin - Thermal and electrical insulating. Corrosion and vibration resistant.

Item Number Type D L
61APF25056 Flat, Plastic 0.25 0.5625
61APF25075 Flat, Plastic 0.25 0.75
61APM18075 Mushroom, Plastic 0.1875 0.75
61APM25075 Mushroom, Plastic 0.25 0.75
61APM25100 Mushroom, Plastic 0.25 1
61APM25150 Mushroom, Plastic 0.25 1.5
61APR18075 Round, Plastic 0.1875 0.75
61APR25075 Round, Plastic 0.25 0.75
61APR25100 Round, Plastic 0.25 1
61APR25150 Round, Plastic 0.25 1.5
61APT18075 Truss, Plastic 0.1875 0.75
61APT25075 Truss, Plastic 0.25 0.75
61APT25100 Truss, Plastic 0.25 1
61APT25150 Truss, Plastic 0.25 1.5
61ASM18075 Mushroom, Steel 0.1875 0.75
61ASM18100 Mushroom, Steel 0.1875 1
61ASM25075 Mushroom, Steel 0.25 0.75
61ASM25100 Mushroom, Steel 0.25 1
61ASM25150 Mushroom, Steel 0.25 1.5
61ASR18075 Round, Steel 0.1875 0.75
61ASR18100 Round, Steel 0.1875 1
61ASR25075 Round, Steel 0.25 0.75
61ASR25100 Round, Steel 0.25 1
61ASR25150 Round, Steel 0.25 1.5
61AST18075 Truss, Steel 0.1875 0.75



Item Number Type D L
61AST18100 Truss, Steel 0.1875 1
61AST25075 Truss, Steel 0.25 0.75
61AST25100 Truss, Steel 0.25 1
61AST25150 Truss, Steel 0.25 1.5
