Unslotted Knurled Head Spin Clips:

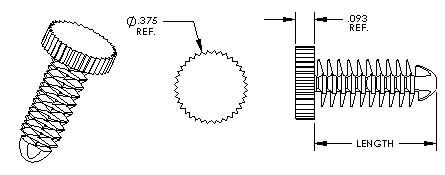

Drawing 1: knspindw.jpg

This design combines the advantages of a push-in fastener with a screw. For fast assembly, the part can be pushed into a 1/4-20 threaded hole, and then screwed in for a tighter fit, or screwed out for disassembly.

This part will also function as a standard Fin Clip for use in a unthreaded hole with a diameter of approximately 13/64".

Item Number Description Length
27SC2520K037 1/4-20 3/8
27SC2520K050 1/4-20 1/2
27SC2520K062 1/4-20 5/8
27SC2520K075 1/4-20 3/4
27SC2520K100 1/4-20 1
