Wing Screws:

Part Photo: wingscr.jpg

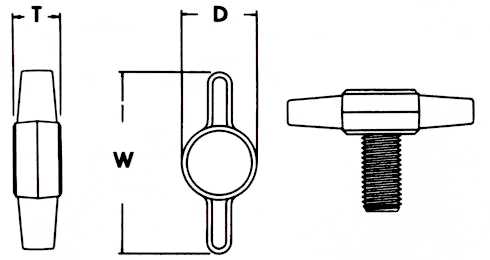

Drawing 1: knob1.jpg

Molded Onto Zinc Plated Steel Alloy Socket Head Cap Screws

All Parts Up To 1 Long Are Fully Threaded

COLOR CODES MUST BE INCLUDED WITH THE ITEM NUMBER WHEN ORDERING.
B - Black RD - Red WT - White
BL - Blue GR - Green
Item Number Screw Size Screw Length Head Dia.
29W010S037B 10-32 0.375 1
29W010S037BL 10-32 0.375 1
29W010S037GR 10-32 0.375 1
29W010S037RD 10-32 0.375 1
29W010S037WT 10-32 0.375 1
29W010S050B 10-32 0.5 1
29W010S050BL 10-32 0.5 1
29W010S050GR 10-32 0.5 1
29W010S050RD 10-32 0.5 1
29W010S050WT 10-32 0.5 1
29W010S075B 10-32 0.75 1
29W010S075BL 10-32 0.75 1
29W010S075GR 10-32 0.75 1
29W010S075RD 10-32 0.75 1
29W010S075WT 10-32 0.75 1
29W010S100B 10-32 1 1
29W010S100BL 10-32 1 1
29W010S100GR 10-32 1 1
29W010S100RD 10-32 1 1
29W010S100WT 10-32 1 1
29W010S150B 10-32 1.5 1
29W010S150BL 10-32 1.5 1
29W010S150GR 10-32 1.5 1
29W010S150RD 10-32 1.5 1
29W010S150WT 10-32 1.5 1



Item Number Screw Size Screw Length Head Dia.
29W014S050B 1/4-20 0.5 1.265
29W014S050BL 1/4-20 0.5 1.265
29W014S050GR 1/4-20 0.5 1.265
29W014S050RD 1/4-20 0.5 1.265
29W014S050WT 1/4-20 0.5 1.265
29W014S075B 1/4-20 0.75 1.265
29W014S075BL 1/4-20 0.75 1.265
29W014S075GR 1/4-20 0.75 1.265
29W014S075RD 1/4-20 0.75 1.265
29W014S075WT 1/4-20 0.75 1.265
29W014S100B 1/4-20 1 1.265
29W014S100BL 1/4-20 1 1.265
29W014S100GR 1/4-20 1 1.265
29W014S100RD 1/4-20 1 1.265
29W014S100WT 1/4-20 1 1.265
29W014S150B 1/4-20 1.5 1.265
29W014S150BL 1/4-20 1.5 1.265
29W014S150GR 1/4-20 1.5 1.265
29W014S150RD 1/4-20 1.5 1.265
29W014S150WT 1/4-20 1.5 1.265
29W037S100 3/8-16 0.75 1.781
29W038S075B 3/8-16 0.75 1.781
29W038S075BL 3/8-16 0.75 1.781
29W038S075GR 3/8-16 0.75 1.781
29W038S075RD 3/8-16 0.75 1.781



Item Number Screw Size Screw Length Head Dia.
29W038S075WT 3/8-16 0.75 1.781
29W038S100B 3/8-16 1 1.781
29W038S100BL 3/8-16 1 1.781
29W038S100GR 3/8-16 1 1.781
29W038S100RD 3/8-16 1 1.781
29W038S100WT 3/8-16 1 1.781
29W038S150 3/8-16 1.5 1.781
29W516S050B 5/16-18 0.5 1.5
29W516S050BL 5/16-18 0.5 1.5
29W516S050GR 5/16-18 0.5 1.5
29W516S050RD 5/16-18 0.5 1.5
29W516S050WT 5/16-18 0.5 1.5
29W516S075B 5/16-18 0.75 1.5
29W516S075BL 5/16-18 0.75 1.5
29W516S075GR 5/16-18 0.75 1.5
29W516S075RD 5/16-18 0.75 1.5
29W516S075WT 5/16-18 0.75 1.5
29W516S100B 5/16-18 1 1.5
29W516S100BL 5/16-18 1 1.5
29W516S100GR 5/16-18 1 1.5
29W516S100RD 5/16-18 1 1.5
29W516S100WT 5/16-18 1 1.5
29W516S150B 5/16-18 1.5 1.5
29W516S150BL 5/16-18 1.5 1.5
29W516S150GR 5/16-18 1.5 1.5



Item Number Screw Size Screw Length Head Dia.
29W516S150RD 5/16-18 1.5 1.5
29W516S150WT 5/16-18 1.5 1.5
