Wing Thumb Screw w/ 1/4-20 Hex Head Cap Screw:

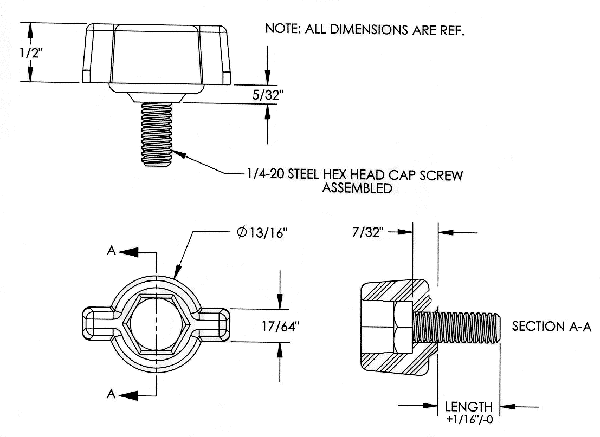

Drawing 1: WN_BoltDwg.gif

Item Number Length Color
29WNO14S025B 1/4" Black
29WNO14S025N 1/4" Natural
29WNO14S025WT 1/4" White
29WNO14S037B 3/8" Black
29WNO14S037N 3/8" Natural
29WNO14S037WT 3/8" White
29WNO14S050B 1/2" Black
29WNO14S050N 1/2" Natural
29WNO14S050WT 1/2" White
29WNO14S062B 5/8" Black
29WNO14S062N 5/8" Natural
29WNO14S062WT 5/8" White
29WNO14S075B 3/4" Black
29WNO14S075N 3/4" Natural
29WNO14S075WT 3/4" White
