Wing Thumb Screw Knob:

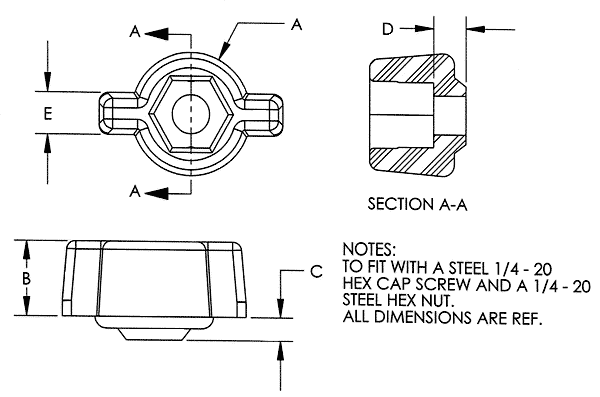

Drawing 1: WN014Dwg.gif

NOTE: 29WN will fit hex nuts and hex head cap screws.

Item Number Color Size A B C D E
29WNO14B Black 0.25 0.8125 0.5 0.156 0.219 0.266
29WNO14N Natural 0.25 0.8125 0.5 0.156 0.219 0.266
29WNO14WT White 0.25 0.8125 0.5 0.156 0.219 0.266
